general discussion on matrix factorization lorem ipsum dolor sit amet
We begin by setting up imports.
import torch
import torchvision
from torch import nn
from torchmetrics.functional.image import peak_signal_noise_ratio
from torchmetrics.functional.regression import mean_squared_error
device = torch.device('mps' if torch.backends.mps.is_available() else 'cpu')
import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec
%matplotlib inline
%config InlineBackend.figure_format = 'retina'
from sklearn.kernel_approximation import RBFSamplerLet’s say we have a complete input image for testing purposes. We will first mask it by putting in nan values randomly. We’ll use the masked image to reconstruct the original image using matrix factorization.
Since our image will be in RGB, we’ll perform all operations for the three channels seperately.
# function to mask the image
def mask_image(img,
prop,
device):
img_copy = img.clone().to(device)
mask = torch.rand(img.shape[1:]) < prop # uniform distribution
img_copy[0][mask] = float('nan')
img_copy[1][mask] = float('nan')
img_copy[2][mask] = float('nan')
return img_copy, mask
# function that randomly removes 900 pixels from the image
def random_mask_image(img, device):
img_copy = img.clone().to(device)
h, w = img.shape[1], img.shape[2]
total_pixels = h * w
# Randomly select 900 pixel indices
random_indices = torch.randperm(total_pixels)[:900]
# Convert flat indices back to 2D indices (for height and width)
mask = torch.zeros(h, w, dtype=torch.bool, device=device)
mask.view(-1)[random_indices] = True
# Apply NaN mask to each channel
img_copy[0][mask] = float('nan')
img_copy[1][mask] = float('nan')
img_copy[2][mask] = float('nan')
return img_copy, maskTo factorize any matrix \(A\), we essentially want to learn two matrices \(W\) and \(H\) such that \[A=W\cdot H\] We want that \[W, H = argmin_{W',H'} ||A-W'\cdot H'||_F^2\] This can achieved using two methods: gradient descent and alternating least squares.
Let us first implement the factorize(A, k, device) function using gradient descent. This function will take as input the matrix to be factorized \(A_{m \times n}\), the rank \(k\) of decomposition and the device for pytorch code.
We first randomly initialize \(W_{m\times k}\) and \(H_{k\times n}\). Then for each iteration of gradient descent we follow the following update rules: \[W = W - \alpha \frac{\partial ||A-W\cdot H||_F^2}{\partial W}\] \[H = H - \alpha \frac{\partial ||A-W\cdot H||_F^2}{\partial H}\]
We use the torch.optim.Adam optimizer with a learning rate of 0.01.
Since the input matrix can have certain pixels as nan we use a mask that ensures we only calculate loss by taking the norm of the non-nan values.
def factorize(A,
k,
device):
"""Factorize the matrix A into W and H"""
A = A.to(device)
# Randomly initialize W, H
W = torch.randn(A.shape[0], k, requires_grad=True, device=device)
H = torch.randn(k, A.shape[1], requires_grad=True, device=device)
# Optimizer
optimizer = torch.optim.Adam([W, H], lr=0.01)
mask = ~torch.isnan(A)
# Train the model
for i in range(1000):
# Compute the loss
diff_matrix = torch.mm(W, H) - A
diff_vector = diff_matrix[mask] # makes a 1D tensor
loss = torch.norm(diff_vector)
# Zero the gradients
optimizer.zero_grad()
# Backpropagate
loss.backward()
# Update the parameters
optimizer.step()
return W, H, lossdef extract_not_nan_coordinates_pixels(image, device):
channels, height, width = image.shape
coords = []
pixel_values = []
for y in range(height):
for x in range(width):
if image[0][x][y].isnan():
continue
coords.append([x, y])
pixel_values.append(image[:, x, y].tolist())
coords = torch.tensor(coords, dtype=torch.float32)
pixel_values = torch.tensor(pixel_values, dtype=torch.float32)
return coords.to(device), pixel_values.to(device)
def create_linear_model(input_dim, output_dim, device):
return nn.Linear(input_dim, output_dim).to(device)
def train(coords, pixels, model, learning_rate=0.01, epochs=1000, threshold=1e-6, verbose=True):
criterion = nn.MSELoss() # define the loss function (mse)
optimizer = torch.optim.Adam(model.parameters(), lr=learning_rate) # use the adam optimizer with the specified learning rate
previous_loss = float('inf') # initialize w very large value (for early stopping)
# training loops
for epoch in range(epochs):
optimizer.zero_grad() # reset the gradient of the optimizer
outputs = model(coords) # compute the output
loss = criterion(outputs, pixels) # calculate the loss that we defined earlier
loss.backward() # compute teh gradients of the loss with respect to the parameters
optimizer.step() # update the parameters based on the gradients computed above
# check for early stopping
if abs(previous_loss - loss.item()) < threshold:
print(f"Stopping early at epoch {epoch} with loss: {loss.item():.6f}")
break
previous_loss = loss.item() # update the previous loss
if verbose and epoch % 100 == 0:
print(f"Epoch {epoch} loss: {loss.item():.6f}")
return loss.item()
def create_rff_features(tensor, num_features, sigma, device):
rff = RBFSampler(n_components=num_features, gamma=1/(2 * sigma**2), random_state=42)
tensor = torch.tensor(rff.fit_transform(tensor.cpu().numpy())).float().to(device)
return tensor
def create_coordinate_map(height, width, device, inv=False): # given the height and width of an image this function creates a coordinate map and returns it
coords = []
if not inv:
for x in range(height):
for y in range(width):
coords.append([x, y])
else:
for y in range(height):
for x in range(width):
coords.append([x, y])
return torch.tensor(coords, dtype=torch.float32).to(device)We use peak_signal_noise_ratio and mean_squared_error from the torchmetrics library as metrics to evaluate the performance of our model. Peak Signal to Noise ratio: Consider we have single channel of an image \(A_{m \times n}\) and its learned factorization \(A'=W_{m \times k}H_{k \times n}\), MSE is defined as \[MSE = \frac{1}{mn}\sum_{i=0}^{m-1} \sum_{j=0}^{n-1} \left(A(i,j)-A'(i,j)\right)^2\] The PSNR (in dB) is defined as \[PSNR = 10\log_{10}\left(\frac{MAX_A^2}{MSE}\right) = 20\log_{10}\left(MAX_A\right)-10\log_{10}\left(MSE\right)\] Here \(MAX_A\) is the maximum possible pixel value of the given channel \(A\) of an iamge. For our case \(MAX_A\) is simply 1.
# function to compute the RMSE and PSNR
def metrics(img, reconstructed_img):
rmse = mean_squared_error(target = img.reshape(-1),
preds=reconstructed_img.reshape(-1),
squared=False)
psnr = peak_signal_noise_ratio(target=img.reshape(-1),
preds=reconstructed_img.reshape(-1))
return rmse, psnrplot_image_completion() that takes as input: img: the original image
prop_list: a list of proportions of pixels to mask
factors_list: a list of the decomposition factors
device: PyTorch device
Now for each proportion of image to be masked prop in prop_list, we first mask the image, then for each r in factors_list we reconstruct all three channels and stack them to get a complete reconstructed image.
We also keep a track of RMSE and PSNR metrics for plotting later on.
def plot_image_completion(img,
prop_list,
factors_list,
device):
fig = plt.figure(figsize=(len(factors_list) * 4, len(prop_list) * 18))
gs = GridSpec(3*len(prop_list)+1, len(factors_list), figure=fig)
curr_row = 0
for i, prop in enumerate(prop_list):
masked_img, mask = mask_image(img=img,
prop=prop,
device=device)
axorg = fig.add_subplot(gs[curr_row, 0:len(factors_list)//2])
axmask = fig.add_subplot(gs[curr_row, len(factors_list)//2:])
curr_row += 1
axorg.imshow(img.permute(1,2,0).cpu().numpy())
axorg.set_title(f"Original image")
axmask.imshow(masked_img.permute(1,2,0).cpu().numpy())
axmask.set_title(f"Masked image with prop={prop}")
rmses = []
psnrs = []
for j, r in enumerate(factors_list):
Wr, Hr, lossr = factorize(masked_img[0], r, device=device)
Wg, Hg, lossg = factorize(masked_img[1], r, device=device)
Wb, Hb, lossb = factorize(masked_img[2], r, device=device)
reconstructed_img = torch.clamp(torch.stack([torch.mm(Wr, Hr).detach(), torch.mm(Wg, Hg).detach(), torch.mm(Wb, Hb).detach()], dim=0), 0, 1)
rmse, psnr = metrics(img, reconstructed_img)
rmses.append(rmse.cpu().numpy())
psnrs.append(psnr.cpu().numpy())
# Plot reconstructed image with metrics in the loop
ax = fig.add_subplot(gs[curr_row, j])
ax.imshow(reconstructed_img.permute(1,2,0).cpu().numpy())
ax.set_title(f"prop= {prop}, r={r}, RMSE={rmse:.4f}, PSNR={psnr:.4f}")
curr_row += 1
# Plot RMSE and PSNR vs r outside the loop
axrmse = fig.add_subplot(gs[curr_row,0:len(factors_list)//2])
axrmse.plot(factors_list, rmses, marker='o')
axrmse.set_xlabel('r')
axrmse.set_ylabel('RMSE')
axrmse.set_title('RMSE vs r')
axpsnr = fig.add_subplot(gs[curr_row,len(factors_list)//2:])
axpsnr.plot(factors_list, psnrs, marker='o')
axpsnr.set_xlabel('r')
axpsnr.set_ylabel('PSNR')
axpsnr.set_title('PSNR vs r')
curr_row += 1
# Make the layout tight for better appearance
plt.tight_layout()

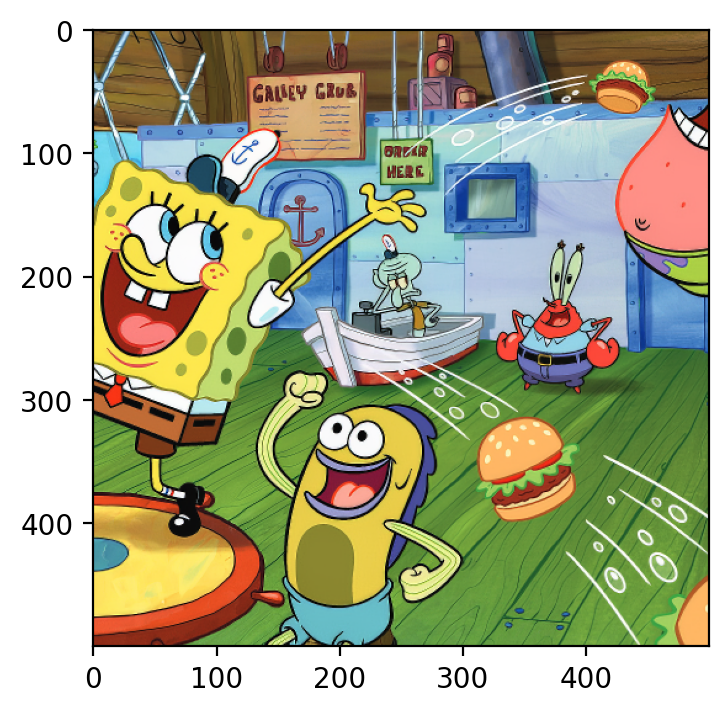

plt.show()krustykrab = torchvision.io.read_image("images/krustykrab.png")
krustykrab = krustykrab.to(dtype=torch.float32, device=device)/255
transform = torchvision.transforms.CenterCrop((500, 500))
krustykrab = transform(krustykrab)
plt.figure(figsize=(6, 4))
plt.imshow(krustykrab.permute(1,2,0).cpu().numpy())
plt.show()

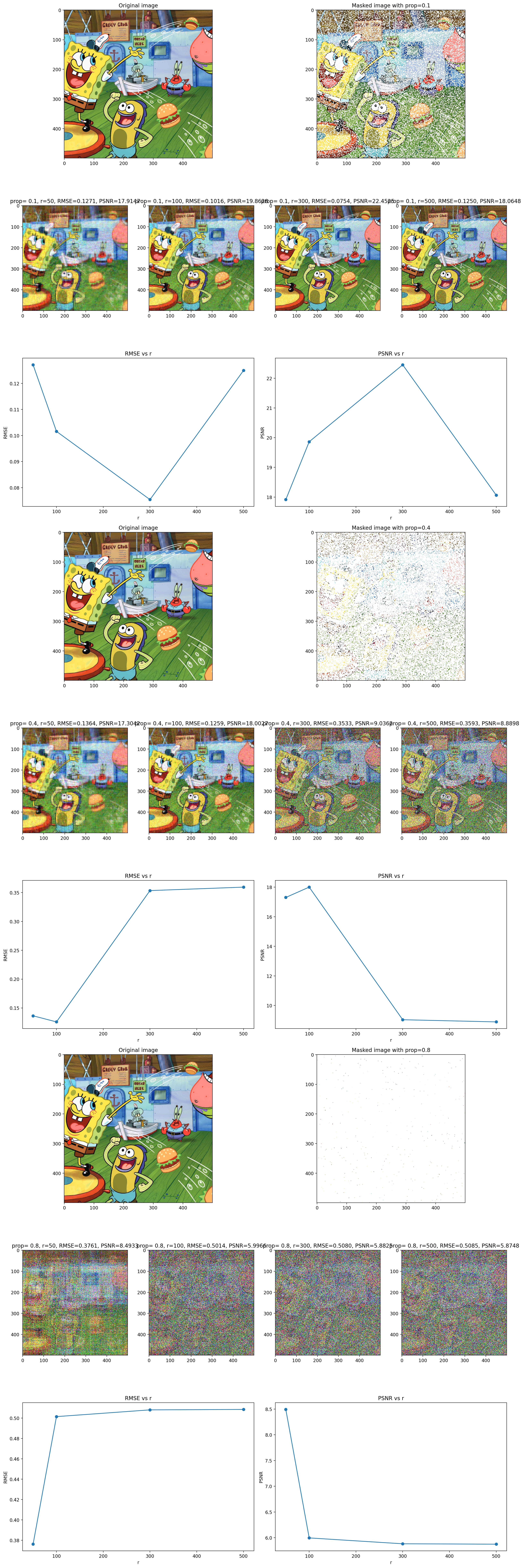

plot_image_completion(krustykrab, prop_list=[0.1, 0.4, 0.8], factors_list=[50,100,300,500], device=device)
